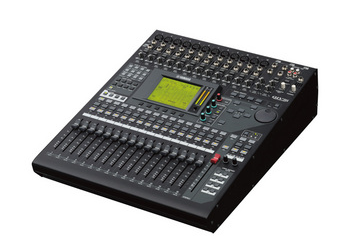

YAMAHA 01V96I数字调音台
YAMAHA 01V96I数字调音台
所属分类：日本YAMAHA调音台
- 点击次数：
- 发布日期：2017/11/25
- 产品编号：1511578373
- 产品价格 ：0
- 在线询价
详细介绍
01V96i 技术规格
| Outline | 01V96i | |
|---|---|---|
| Mixing capability | Mixing channels | 32 Mono + 4 Stereo |
| GROUP | 8 | |
| AUX | 8 | |
| MAIN | Stereo | |
| Input channel functions | Gate Attenuator 4-band PEQ 2x Compressor Delay Pan | |
| Output channel functions | Attenuator 4-band PEQ Compressor Delay | |
| On-board processors | 4x SPX multi effectors | |
| I/O | Mic inputs | 12 |
| Phantom power | +48V DC; ON/OFF per 4ch | |
| Line inputs | 2x Stereo 2x 2tr in | |
| AD converter | 24-bit; 128-time over sampling | |
| Line outputs | Stereo output Monitor output 4x Omni output | |
| DA converter | 24-bit; 128-time over sampling | |
| Digital I/O | ADAT (8-in/8-out) 2tr in/out | |
| Expansion slots | Mini-YGDAI (16-in/16-out) | |
| Control and others | To Host(USB) MIDI Word clock I/O | |
| General specifications | 01V96i | |
| Internal processing | 32bit Accumulator: 58bit | |
| Sampling frequency rate | Internal | 44.1 kHz 48 kHz 88.2 kHz 96 kHz |
| External | 44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%) | |
| Signal delay | Less than 1.6ms CH INPUT to STEREO OUT (@SampIing frequency = 48kHz) / Less than 0.8ms CH INPUT to STEREO OUT (@SampIing frequency = 96kHz) | |
| Total harmonic distortion | CH INPUT to STEREO OUT: Less than 0.05% 20Hz to 20kHz @+14dBu into 600Ω / Less than 0.01% 1kHz @+24dBu into 600Ω (@SampIing frequency = 48kHz) / Less than 0.05% 20Hz to 40kHz @+14dBu into 600Ω / Less than 0.01% 1kHz @+24dBu into 600Ω (@SampIing frequency = 96kHz) | |
| Frequency response | CH INPUT to STEREO OUT: 0.5 -1.5dB 20Hz - 20kHz @+4dBu into 600Ω(@SampIing frequency = 48kHz) / 0.5 -1.5dB 20Hz - 40kHz @+4dBu into 600Ω(@SampIing frequency = 96kHz) | |
| Dynamic range | 110dB typ. DA Converter (STEREO OUT) / 105dB typ. AD+DA (to STEREO OUT) @fs=48kHz / 105dB typ. AD+DA (to STEREO OUT) @fs=96kHz | |
| Hum & noise level | Equivalent input noise | -128dBu Equivalent Input Noise. |
| Residual output noise | -86dBu residual output noise. STEREO OUT: STEREO OUT off. / -86dBu (90dB S/N) STEREO OUT: STEREO fader at nominal level and all CH INPUT faders at minimum level. / -64dBu (68dB S/N) STEREO OUT: STEREO fader at nominal level and one CH INPUT fader at nominal level | |
| Crosstalk | -80dB adjacent input channels (CH1-12) / -80dB adjacent input channels (CH13-16) / -80dB input to output | |
| Power requirements | AC100V 120V 220-240V 50/60 Hz | |
| Power consumption | 90W | |
| Dimensions | W | 436mm; 17-1/8in |
| H | 148mm; 5-7/8in | |
| D | 548mm; 21-5/8in | |
| Net weight | 14kg; 30.86lbs | |
| Others | Fader: 100mm motorized x17 | |
Analog input characteristics
| Input terminal | PAD | GAIN | Actual load impedance | For use with nominal | Input level | Connector | ||
|---|---|---|---|---|---|---|---|---|
| Sensitivity | Nominal | Max. before clip | ||||||
| CH INPUT 1 to 12 | 0 | -60dB | 3kohms | 50-600ohm Mics & 600ohm Lines | -70dBu | -60dBu | -40dBu | A:XLR-3-31 type (Balanced) B:TRS phone jack (Balanced) |
| -16dB | -26dBu | -16dBu | +4dBu | |||||
| 20 | -6dBu | +4dBu | +24dBu | |||||
| CH INPUT 13 to 16 | -26dB | 10kohms | 600ohm Lines | -36dBu | -26dBu | -6dBu | TRS phone jack (Balanced) | |
| +4dB | -6dBu | +4dBu | +24dBu | |||||
| CH INSERT IN 1 to 12 | 10kohms | 600ohm Lines | -12dBu | -2dBu | +18dBu | TRS phone jack (Unbalanced) | ||
| 2TR IN [L,R] | 10kohms | 600ohm Lines | -10dBV | -10dBV | +10dBV | RCA pin jack (Unbalanced) | ||
Analog output characteristics
| Output terminal | Actual source impedance | For use with nominal | Output level | Connector | |
|---|---|---|---|---|---|
| Nominal | Max. before clip | ||||
| STEREO OUT L,R | 75ohms | 600ohm Lines | +4dBu | +24dBu | XLR-3-32 type (Balanced) |
| OMNI OUT 1 to 4 | 150ohms | 10kohm Lines | +4dBu | +24dBu | TRS phone jack (Balanced) |
| MONITOR OUT L,R | 150ohms | 10kohm Lines | +4dBu | +24dBu | TRS phone jack (Balanced) |
| CH INSERT OUT 1 to 12 | 600ohms | 10kohm Lines | -2dBu | +18dBu | TRS phone jack (Unbalanced) |
| 2TR OUT [L,R] | 600ohms | 10ohm Lines | -10dBV | +10dBV | RCA pin jack (Unbalanced) |
| PHONES | 100ohms | 8ohm Lines | 4mW | 25mW | ST phone jack (Unbalanced) |
| 40ohm Lines | 12mW | 75mW | |||
Digital input characteristics
| Terminal | Format | Data length | Level | Connector |
|---|---|---|---|---|
| 2TR IN DIGITAL | IEC-60958 | 24bit | 0.5Vpp/75ohms | RCA pin jack |
| ADAT IN | ADAT | 24bit | - | OPTICAL |
Digital output characteristics
| Terminal | Format | Data length | Level | Connector |
|---|---|---|---|---|
| 2TR OUT DIGITAL | IEC-60958 Consumer use | 24bit | 0.5Vpp/75ohms | RCA pin jack |
| ADAT OUT | ADAT | 24bit | - | OPTICAL |
Digital input/output characteristics
| Terminal | Format | Data length | Level | Connector |
|---|---|---|---|---|
| USB | USB2.0 | 24bit | - | B type USB connector |
Control I/O characteristics
| Terminal | Format | Level | Connector | |
|---|---|---|---|---|
| TO HOST USB | USB | 0V - 3.3V | B type USB connector | |
| MIDI | IN | MIDI | - | DIN Connector 5P |
| OUT | MIDI | - | DIN Connector 5P | |
| THRU | MIDI | - | DIN Connector 5P | |
| WORD CLOCK | IN | - | TTL/75ohms | BNC Connector |
| OUT | - | TTL/75ohms | BNC Connector | |
